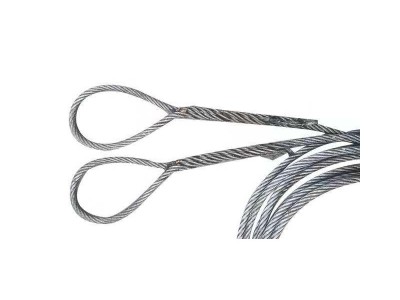

1. Reference standards: EN 13411-3; GB/T 16762;

2. Steel wire ropes listed in the table: 6×37 (M) type: 1670 MPa; 6×19 (M) type: 1770 MPa;

3. Default safety factor in the table: 5; slings can be customised with safety factors ranging from 3 to 6 as required;

4. Products of different structures and strengths can be customised according to customer requirements;

5. Eye lengths A and B can be manufactured to customer specifications;

6. For all customised products, please inform customer service of your specific requirements; they will recommend a suitable sling configuration, calculate the cost and guide you through the ordering process.

1. Applicable standards: EN13411-3, GB/T16761, GB/T16762;

2. The table uses parameters based on steel wire ropes: 6×37 (M) type: 1670MPa; 6×19 (M) type: 1770MPa, customizable;

3. Our company can customize steel wire rope products with different strengths and loads according to customer requirements;

4. Table safety factor: 5 times safety factor;

5. Ring eye size: The lengths A and B of the ring eyes can be customized according to customer requirements.

1. Executive standards: N13411-3, GB/T16761, GB/T16762;

2. The table utilizes parameters based on steel wire ropes: 6×37 (M) type: 1670MPa; 6×19 (M) type: 1770MPa, customizable;

3. Our company can customize steel wire rope products with different strengths and loads according to customer requirements;

4. Table safety factor: 5 times safety factor;

5. Ring eye size: The ring eye lengths A and B can be customized according to customer requirements.

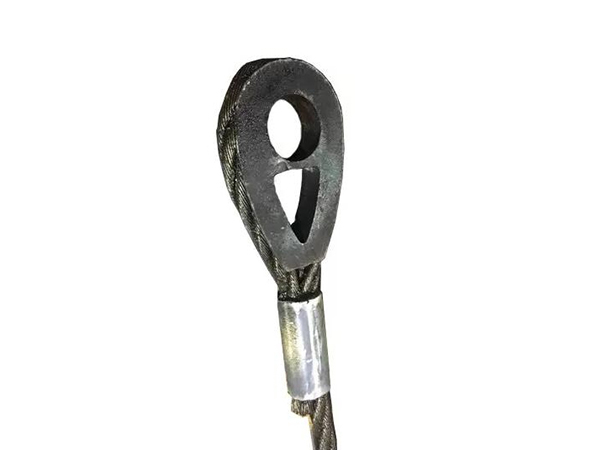

1. Standards: EN13411-3, GB/T16761, GB/T16762;

2. Parameters in the table are based on wire rope: 6×37 (M) type: 1670MPa; 6×19 (M) type: 1770MPa (customizable);

3. Our company can customize wire rope products with different strengths and loads according to customer requirements;

4. Table safety factor: 5 times safety factor;

5. Eye size: Eye lengths A and B can be made according to customer requirements.

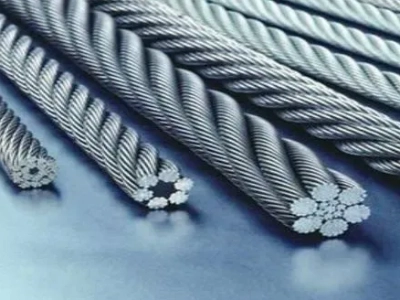

Round-strand point-contact wire rope: In this type of rope, all wires within a strand—with the exception of the centre wire—have the same diameter. The lay lengths of adjacent layers differ, and the wires in adjacent layers within the strand make contact only at specific points; this type of rope is also known as a non-parallel-lay wire rope. The wires within the strand are arranged concentrically, with a difference of six wires between adjacent layers. These ropes offer good flexibility and are predominantly used for small diameters (under 10 mm) and large diameters (over 60 mm), as well as in applications such as lifting and lashing where ease of handling is a consideration.

Manufacturing Standard: USA Federal Specification RR-C-271F

Material: Forged from high-quality alloy steel.

Product Testing: Manufacturer’s testing involves a tensile load of twice the rated working load; breakage tests are carried out on samples from each batch.

Safety Factor: 6 times the rated working load.

Wire ropes in which adjacent layers of wires within a strand are in line contact are also known as parallel-lay wire ropes. The strands are formed by twisting wires of various specifications; the pitch of the wires in each layer is the same, but the lay angle varies. Depending on the arrangement of the wires within the strand, line-contact wire ropes are classified into four types: Walentin, Sill, filled, and Walentin-Sill. In line-contact wire ropes, not only do the wires within the same layer make line contact, but adjacent wires also make line contact; furthermore, the wires in each layer of the strand have the same lay direction (see Wire Rope Laying Methods) and pitch.

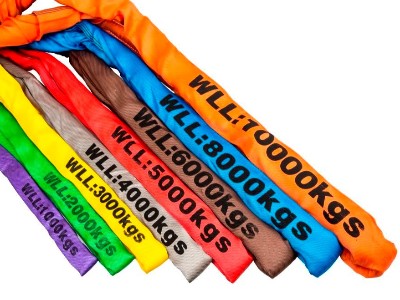

Load capacity: 0–3,000 tons; Length range: 1–100 meters
Manufacturing standards: EN 1492-2+A1, JB/T8521-2007
Color: Complies with international standards
We offer both sling tubes and finished slings for sale.
