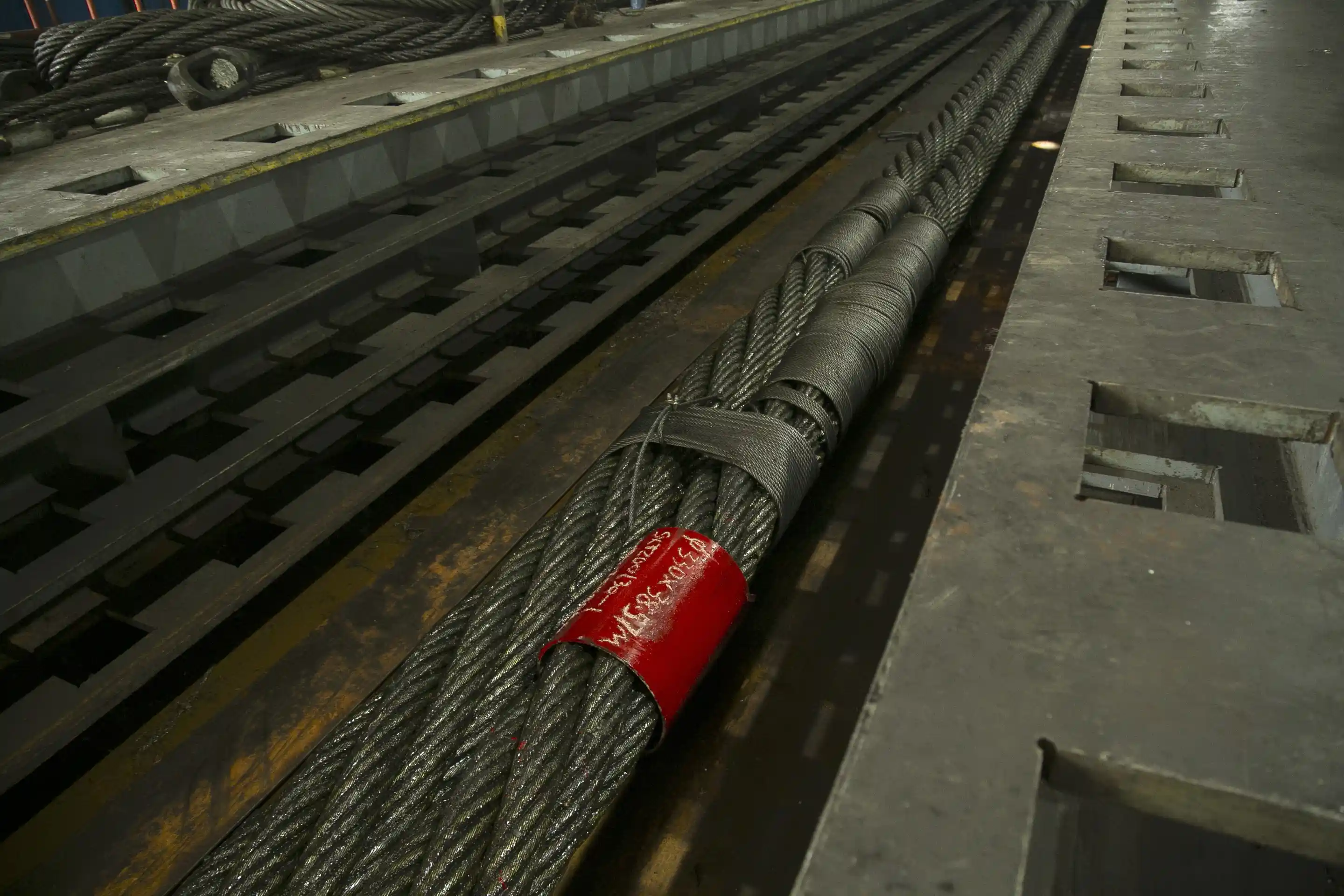

Jointless rope loop

Short Description:

1. Executive standards: N13411-3, GB/T16761, GB/T16762;2. The table utilizes parameters based on steel wire ropes: 6x37 (M) type: 1670MPa; 6x19 (M) type: 1770MPa, customizable;3. Our company can customize steel wire rope products with different strengths and loads according to customer requirements;4. Table safety factor: 5 times safety factor;5. Ring eye size: The ring eye lengths A and B can be customized according to customer requirements.

Tags: Jointless rope loop

Table of Rated Load and Breaking Load Parameters for Rigging

Rope diameter (mm)	Strand diameter (mm)	Breakdown load (kN)	Rated load per leg (kN)		Rated load per arm (kN)		Rated load per leg (kN)
Rope diameter (mm)	Strand diameter (mm)	Breakdown load (kN)	β=0°	β≥45°	30°≤β<45°	β≤45°	45°≤β≤60°
15	5	161	16	23	16	34	25
18	6	231	24	33	24	50	35
21	7	315	32	45	32	67	48
24	8	411	42	59	42	88	63
30	10	643	66	92	66	138	98
36	12	926	94	132	94	198	142
42	14	1260	128	180	128	270	193
48	16	1645	168	235	168	352	252
54	18	2082	212	297	212	446	318
60	20	2571	262	367	262	550	393
66	22	3111	317	444	317	666	476
72	24	3702	377	528	377	792	566
78	26	4345	443	620	443	930	664
84	28	5038	513	718	513	1077	770
90	30	5783	589	825	589	1237	884
96	32	6579	670	938	670	1407	1005
102	34	7425	757	1060	757	1589	1135
108	36	8333	849	1189	849	1784	1274
114	38	9282	940	1316	940	1974	1410
120	40	10300	1050	1470	1050	2205	1575
126	42	11322	1154	1616	1154	2424	1731
132	44	12444	1268	1775	1268	2663	1902
144	48	14790	1500	2100	1500	3150	2250
156	52	17340	1767	2474	1767	3711	2651
162	54	18768	1913	2678	1913	4018	2870
168	56	20196	2058	2881	2058	4322	3087
174	58	21624	2204	3086	2204	4629	3306
180	60	23154	2360	3304	2360	4957	3540
192	64	26316	2682	3755	2682	5632	4023
216	72	33354	3401	4761	3401	7142	5102
240	80	41106	4190	5866	4190	8799	6285
258	86	47532	4845	6783	4845	10175	7268
282	94	56814	5791	8108	5791	12162	8687
300	100	64620	6550	9170	6550	13755	9825
318	106	72216	7361	10306	7361	15459	11042
354	118	89490	9120	12768	9120	19152	13680
